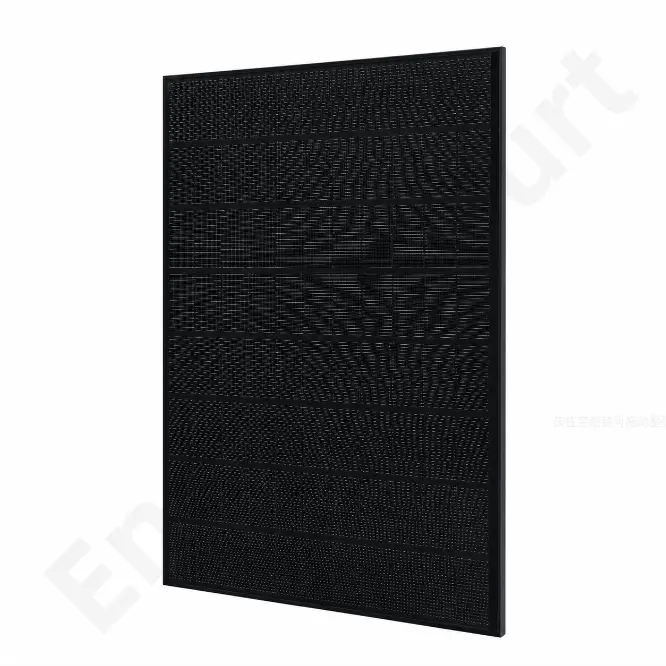

REC Alpha Pure-RX 475W, N Type BiFacial HJT Solar Panel (1728*1205*30mm/33pcs per Pallet)
REC Alpha Pure-RX475W Solar Panel
The REC 475W Alpha Pure-RX is a premium high-efficiency solar module engineered with advanced Heterojunction (HJT) cell technology. Featuring 88 half-cut cells with gapless technology, a black backsheet, and a black anodised aluminium frame, it combines high power output with a sleek appearance for residential and commercial rooftop solar installations across Australia.
Delivering 22.8% module efficiency and a 228W/m² power density, the Alpha Pure-RX helps maximise energy production from available rooftop space. Its excellent temperature performance, robust mechanical construction, and low annual degradation support reliable, long-term energy generation in Australia's demanding environmental conditions.
Key Features
475W High Power Output for greater energy generation from every panel.
22.8% Module Efficiency to maximise rooftop energy production and system performance.
Advanced Heterojunction Cell Technology featuring 88 half-cut cells with gapless technology for high power density.
Excellent Temperature Performance with a -0.24%/°C power temperature coefficient for improved output in hot climates.
Durable Glass and Frame Construction featuring 3.2mm anti-reflective solar glass, a highly resistant black polymer backsheet, and a black anodised aluminium frame.
Heavy-Duty Mechanical Design tested to 7,000Pa front load and 4,000Pa rear load with four-point clamping, subject to installation requirements.
Enhanced Hail Resistance demonstrated by Kiwa PVEL testing with 55mm hailstones at 33.9m/s.
Long-Term Warranty including a 20-year standard product warranty and 25-year power warranty, guaranteeing at least 92% output in year 25. Product warranty extends to 25 years under REC ProTrust when installed by an REC Certified Solar Professional and registered with REC, subject to applicable conditions.
Technical Specifications
Rated Power: 475W
Module Efficiency: 22.8%
Cell Technology: REC Heterojunction (HJT), 88 half-cut cells with gapless technology
Dimensions: 1728 × 1205 × 30 mm
Weight: 22.7 kg
Maximum System Voltage: 1000V DC
Junction Box: IP68, 4-part design with 4 bypass diodes
| Brand | REC |
| Power | 475W |
| Cell Number | 88 cell |
| Frame (colour and size) | Black 30mm |
| Back sheet | Black Backsheet |
Product Dimensions
| Length | 1728.0 mm |
| Width | 1205.0 mm |
| Height | 30.0 mm |
| Volume | 0.06247 m³ |
| Weight | 22.7 kg |
33pcs per pallet
594pcs per 40 ft GP (18 pallets)
Specifications
| Brand | REC |
| Power | 475W |
| Cell Number | 88 cell |
| Frame (colour and size) | Black 30mm |
| Back sheet | Black Backsheet |
