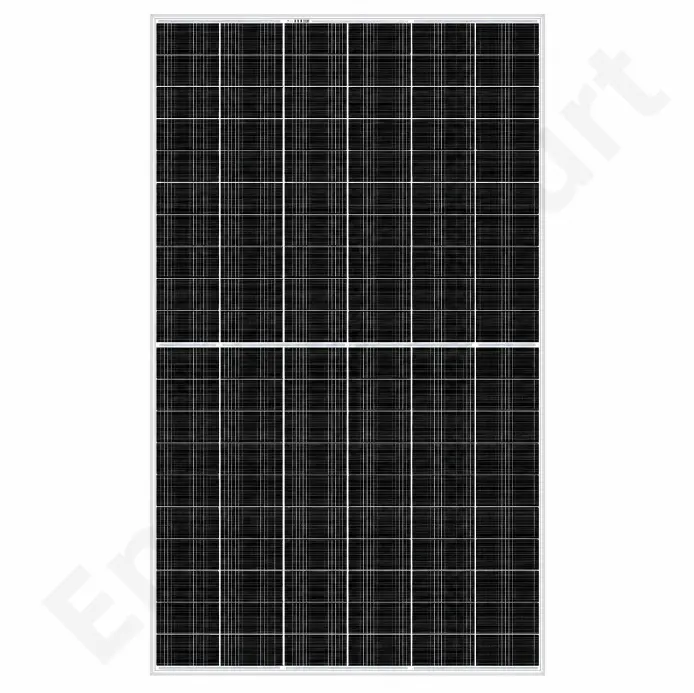

REC Alpha Pro M 620W, N Type BiFacial HJT Solar Panel (2175*1305*30mm/33pcs per Pallet)
REC Alpha Pro M 620W Solar Panel
The REC 620W Alpha Pro M is a premium high-efficiency solar module engineered with advanced Heterojunction (HJT) cell technology. Featuring 120 half-cut REC bifacial heterojunction cells, a silver polymer backsheet, and a white anodised aluminium frame, it combines high power output with robust construction for commercial and industrial solar installations across Australia.
Delivering 21.8% module efficiency and a 218W/m² power density, the Alpha Pro M helps maximise energy production from available installation space. Its excellent temperature performance, durable mechanical design, and low annual degradation support reliable, long-term energy generation in Australia's demanding environmental conditions.
Key Features
620W High Power Output for greater energy generation from every panel.
21.8% Module Efficiency to maximise energy production and system performance.
Advanced Heterojunction Cell Technology featuring 120 half-cut REC bifacial heterojunction cells for high power density.
Excellent Temperature Performance with a -0.24%/°C power temperature coefficient for improved output in hot climates.
Durable Glass and Frame Construction featuring 3.2mm anti-reflective solar glass, a highly resistant silver polymer backsheet, and a white anodised aluminium frame.
Heavy-Duty Mechanical Design tested to 5,400Pa front load and 2,400Pa rear load with four-point mounting, subject to installation requirements.
Certified Hail Resistance tested with 35mm hailstones in accordance with IEC 61215:2016.
Low Annual Degradation of 0.25% under the power warranty, supporting long-term energy yield.
Long-Term Warranty including a 20-year standard product warranty and 25-year power warranty, guaranteeing at least 92% output in year 25. Product warranty extends to 25 years under REC ProTrust when installed by an REC Certified Solar Professional and registered with REC, subject to system size and applicable conditions.
Technical Specifications
Rated Power: 620W
Product Code: REC620AA PRO M
Module Efficiency: 21.8%
Power Density: 218W/m²
Cell Technology: REC Heterojunction (HJT), 120 half-cut bifacial cells
Dimensions: 2175 × 1305 × 30 mm
Weight: 32.5 kg
Maximum System Voltage: 1500V DC
Maximum Power Voltage (VMPP): 36.6V
Maximum Power Current (IMPP): 16.94A
Open Circuit Voltage (VOC): 44.4V
Short Circuit Current (ISC): 17.79A
| Brand | REC |
| Power | 620W |
| Cell Number | 120 cell |
| Frame (colour and size) | Silver 30mm |
| Back sheet | White Backsheet |
Product Dimensions
| Length | 2175.0 mm |
| Width | 1305.0 mm |
| Height | 30.0 mm |
| Volume | 0.08515 m³ |
| Weight | 32.5 kg |
33pcs per pallet
528pcs per 40 ft GP (16 pallets)
Specifications
| Brand | REC |
| Power | 620W |
| Cell Number | 120 cell |
| Frame (colour and size) | Silver 30mm |
| Back sheet | White Backsheet |
