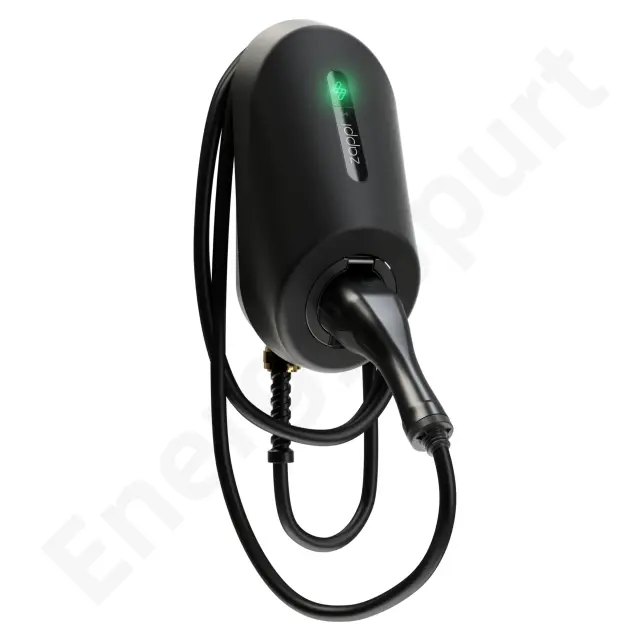

MYENERGI Zappi GLO Black Single Phase (7kW 6.5m Cable Type2) Tethered Smart EV Charger

myenergi zappi GLO 7kW Single-Phase EV Charger

The myenergi zappi GLO is a compact, smart EV charger designed for 7kW single-phase home charging. With a sleek, screenless design and settings managed through the myenergi app, it provides a convenient charging experience while integrating with solar panels, battery storage, and smart heating systems to support greater control over household energy use.

Available with a 6.5m tethered Type 2 cable or a Type 2 socket with a locking system, zappi GLO offers flexibility for different installation requirements. Featuring RFID access control, integrated 6mA DC residual current protection, and a durable IP65- and IK10-rated enclosure, it is suitable for permanent indoor or outdoor installation. The Installer Assistant app provides step-by-step guidance for straightforward setup and commissioning.

Key Features

• 7kW Single-Phase Charging with an adjustable charging current of 6A–32A.

• Smart App Control with settings managed through the myenergi app.

• Solar & Battery Integration supporting integration with household solar, battery storage, and smart heating systems.

• Flexible Type 2 Connection with a 6.5m tethered cable or a socket with a locking system.

• RFID Access Control supporting cards and fobs for up to 126 users.

• Optional Dynamic Load Balancing regulating charging current to help prevent supply overload.

• Guided Installation & Commissioning using the Installer Assistant app.

• IP65 & IK10 Protection providing weather protection and impact resistance.

• Multicolour LED Indicator displaying charging status at a glance.

Technical Specifications

• Rated Power: 7kW

• Power Supply: Single Phase, 230V AC ±10%, 50Hz

• Maximum Rated Current: 32A

• Adjustable Charging Current: 6A–32A

• Charging Mode: Mode 3 (IEC 61851-1)

• Connector Type: Type 2 Tethered Cable (6.5m) / Type 2 Socket with Locking System

• Standby Power Consumption: 3W

• DC Residual Current Protection: Integrated 6mA DC Protection (RDC-DD)

• Wi-Fi Connectivity: 2.4GHz, IEEE 802.11 b/g/n

• Bluetooth Connectivity: Bluetooth Low Energy (BLE) v4.2

• RFID: 13.56MHz, ISO/IEC 14443 (Mifare Classic); RFID Card Supplied

• OCPP Support: OCPP 1.6J via myenergi Backend (Not Available for Offline/Local Use)

• External CT Support: Up to 2 External CTs

• Dimensions: 350 × 170 × 160 mm

• Weight: 4.1kg (Tethered) / 3.1kg (Untethered)

• Enclosure Material: Polycarbonate

• IP Rating: IP65

• Impact Resistance: IK10

• Operating Temperature: −25°C to +40°C

• Installation: Permanent Indoor or Outdoor Mounting
